Max Tube Fittings is a leading manufacturer and supplier of Stainless Steel Hydraulic Fittings in Delhi, India. We provide precision-engineered fittings for hydraulic systems used in high-pressure and corrosive environments. Our fittings are designed for leak-free connections and high performance in demanding applications. Using top-quality stainless steel, we produce a wide range of adapters, couplings, elbows, tees, and unions that meet international standards. With advanced technology and thorough testing, Max Tube Fittings ensures that its hydraulic fittings fulfill the needs of industries like aerospace, automotive, marine, and heavy machinery manufacturing.

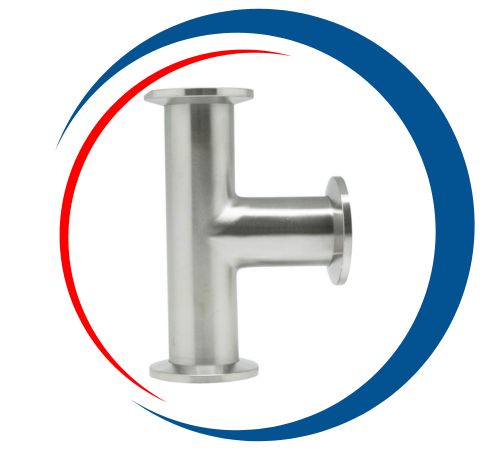

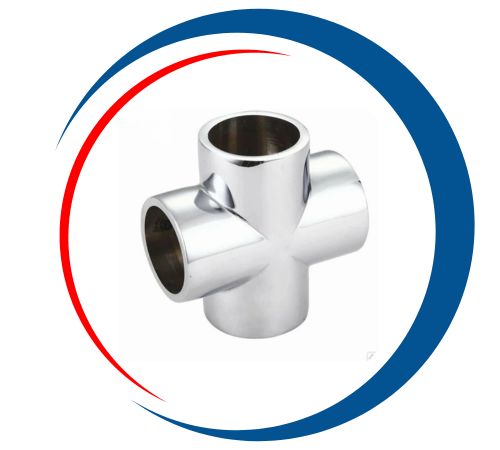

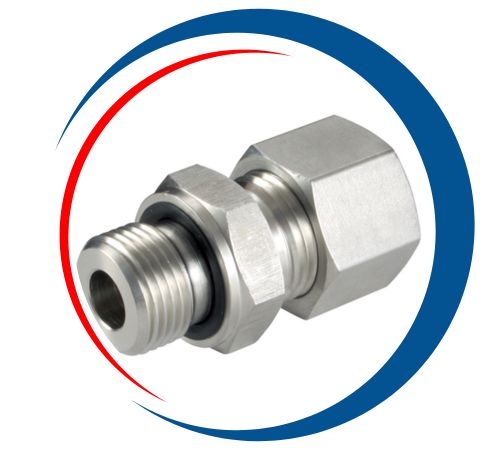

SS Equal Hydraulic Tee Fittings Manufacturer in India, Stainless Steel Hydraulic Equal Elbow Fittings Exporter in Delhi, Stainless Steel Hydraulic Equal Cross Hydraulic Fittings in Delhi, India, SS Hydraulic Female Stud Coupling Manufacturer in Delhi, Stainless Steel Hydraulic Straight Coupling in India, Stainless Steel Hydraulic Tube Fittings Supplier in Delhi, Stainless Steel Hydraulic Male Stud Coupling Price List in Delhi

Stainless Steel Hydraulic Fittings are typically made from SS 304 or SS 316L, which contain chromium (18%), nickel (8–12%), and molybdenum (in SS316) for added corrosion resistance. Mechanical properties include a tensile strength of up to 600 MPa and a yield strength of 240 MPa, along with excellent ductility and fatigue resistance. The material meets ASTM A182 or A276 standards. These properties make fittings suitable for handling high-pressure hydraulic fluids and resisting corrosion, vibration, and mechanical stress in various tough environments.

Stainless Steel Hydraulic Fittings Specifications

DESIGN STANDARD	DIN 2353/ ISO 8434-1
MATERIAL	SS 304 ,SS 304L , SS 316 ,SS 316L, SS 316TI ( 1.4571) , SS 310, SS 347
MATERIAL
WORKING PRESSURE	(LOW) LL SERIES – 100 BAR
	(MEDIUM)L SERIES – 100 BAR TO 500 BAR
	(HEAVY)S SERIES – 200 BAR TO 800 BAR
SIZE RANGE	LL SERIES – 4LL TO 12LL
	L SERIES – 6L TO 42L
	S SERIES – 6S TO 38S
CONNECTIONS	TUBE TO TUBE , TUBE TO MALE THREAD , TUBE TO FEMALE THREAD , TUBE TO BUTT WELD , TUBE TO SOCKET WELD , TUBE TO JIC 37* , TUBE TO 24* CONE, TUBE TO SWIVEL END , TUBE TO ADJUSTBALE STANDPIPE
CONNECTIONS	WELD NIPPLE TO MALE THREAD , WELD NIPPLE TO FEMALE THREAD , WELD NIPPLE TO BUTT WELD , WELD NIPPLE TO SOCKET WELD , WELD NIPPLE TO 24* CONE , WELD NIPPLE TO 37* JIC , WELD NIPPLE TO SWIVEL
BODY TYPE	FORGED, BAR STOCK
SURFACE	STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH
TEMPERATURE	(-60C TO 400C)

APPLICATIONS & INDUSTRIES	CONSTRUCTION EQUIPMENTS , DRILLING PLATFORMS, HYDRO POWER PLANTS , MACHINE TOOLS , RAILWAY TECHNOLOGY , SHIPBUILDING , WIND TUBRINE , MOBILE HYDRAULIC EQUIPMENT , MINNING , STATIONARY HYDRAULIC EQUIPMENT, INDUSTRIAL HYDRAULICS, INJECTION MOULDING MACHINERY , ALUMINUM DIE-CASTING MACHINERY, SINTERING MACHINERY, STEEL MILLS, HYDRAULIC PRESSES, PAPER PROCESSING MOBILE HYDRAULICS, BUILDING MACHINERY, AGRICULTURAL FORESTRY, LIFTING & MATERIAL HANDLING EQUIPMENT
MATERIAL DESIGNATOR	STAINLESS STEEL – ASTM A 276 , ASTM 182

Stainless Steel Hydraulic Fittings Chemical Composition

Type	Grade		ASTM A240 Chemical Composition
Type	ASTM(A240M)	Others(JIS)	C	Si	Mn	P	S	Ni	Cr	Mo	Others
Stainless Steels	304	SUS304	≤0.07	≤0.75	≤2.00	≤0.045	≤0.030	8.0/10.5	17.5/19.5	―	N≤0.10
	304H		0.04/0.10	≤0.75	≤2.00	≤0.045	≤0.030	8.0/10.5	18.0/20.0	―
	304L	SUS304L	≤0.030	≤0.75	≤2.00	≤0.045	≤0.030	8.0/12.0	17.5/19.5	―	N≤0.10
	304N	SUS304N1	≤0.08	≤0.75	≤2.00	≤0.045	≤0.030	8.0/10.5	18.0/20.0	―	N:0.10/0.16
	304LN	SUS304LN	≤0.030	≤0.75	≤2.00	≤0.045	≤0.030	8.0/12.0	18.0/20.0	―	N:0.10/0.16
	309S	SUS309S	≤0.08	≤0.75	≤2.00	≤0.045	≤0.030	12.0/15.0	22.0/24.0	―
	310S	SUS310S	≤0.08	≤1.50	≤2.00	≤0.045	≤0.030	19.0/22.0	24.0/26.0	―
	316	SUS316	≤0.08	≤0.75	≤2.00	≤0.045	≤0.030	10.0/14.0	16.0/18.0	2.00/3.00	N≤0.10
	316L	SUS316L	≤0.030	≤0.75	≤2.00	≤0.045	≤0.030	10.0/14.0	16.0/18.0	2.00/3.00	N≤0.10
	316H		0.04/0.10	≤0.75	≤2.00	≤0.045	≤0.030	10.0/14.0	16.0/18.0	2.00/3.00
	316LN	SUS316LN	≤0.030	≤0.75	≤2.00	≤0.045	≤0.030	10.0/14.0	16.0/18.0	2.00/3.00	N:0.10/0.16
	317L	SUS317L	≤0.030	≤0.75	≤2.00	≤0.045	≤0.030	11.0/15.0	18.0/20.0	3.0/4.0	N≤0.10
	317LN	SUS317LN	≤0.030	≤0.75	≤2.00	≤0.045	≤0.030	11.0/15.0	18.0/20.0	3.0/4.0	N:0.10/0.22
	321	SUS321	≤0.08	≤0.75	≤2.00	≤0.045	≤0.030	9.0/12.0	17.0/19.0	―	N≤0.10Ti:5ʷʢC+Nʣ/0.70
	347	SUS347	≤0.08	≤0.75	≤2.00	≤0.045	≤0.030	9.0/13.0	17.0/19.0	―	Nb:10ʷC/1.00
	904L	SUS890L	≤0.020	≤1.00	≤2.00	≤0.045	≤0.035	23.0/28.0	19.0/23.0	4.00/5.00	N≤0.10Cu:1.0/2.0
	S31254		≤0.020	≤0.80	≤1.00	≤0.030	≤0.010	17.5/18.5	19.5/20.5	6.0/6.5	N:0.18/0.25Cu:0.50/1.00
		SUS317J2	≤0.06	≤1.50	≤2.00	≤0.045	≤0.030	12.00/16.00	23.00/26.00	0.50/1.20	N:0.25/0.40

Stainless Steel Hydraulic Fittings Mechanical Properties

Type	Mechanical Properties for Stainless Steel Plates
	ASTM(A240M)	Others(JIS)	Tensile Properties			Hardness
	ASTM(A240M)	Others(JIS)	Yield Strength (Mpa)	Tensile Strength (Mpa)	Elongation (%)	HBW	HRBW
AusteniticSteels	304	SUS304	≥205	≥515	≥40	≤201	≤92
	304H		≥205	≥515	≥40	≤201	≤92
	304L	SUS304L	≥170	≥485	≥40	≤201	≤92
	304N	SUS304N1	≥240	≥550	≥30	≤217	≤95
	304LN	SUS304LN	≥205	≥515	≥40	≤217	≤95
	309S	SUS309S	≥205	≥515	≥40	≤217	≤95
	310S	SUS310S	≥205	≥515	≥40	≤217	≤95
	316	SUS316	≥205	≥515	≥40	≤217	≤95
	316L	SUS316L	≥170	≥485	≥40	≤217	≤95
	316H		≥205	≥515	≥40	≤217	≤95
	316LN	SUS316LN	≥205	≥515	≥40	≤217	≤95
	317L	SUS317L	≥205	≥515	≥40	≤217	≤95
	317LN	SUS317LN	≥240	≥550	≥40	≤217	≤95
	321	SUS321	≥205	≥515	≥40	≤217	≤95
	347	SUS347	≥205	≥515	≥40	≤201	≤92
	N08904/904L	SUS890L	≥220	≥490	≥35	≤196	≤90
	S31254		≥310	≥655	≥35	≤223	≤96
		SUS317J2	≥345	≥690	≥40	≤250	≤100

Top Stainless Steel Hydraulic Fittings Manufacturing Company in Delhi

At Max Tube Fittings, we are the largest supplier, manufacturer, and exporter of Stainless Steel Hydraulic Fittings in Delhi, India. Our advanced manufacturing facilities, strategically positioned in the India, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

Types of Stainless Steel Hydraulic Fittings

SS Hydraulic Straight Coupling in Delhi, India, Hydraulic Stainless Steel Bulkhead Union Price in Delhi, SS Hydraulic Banjo Elbow Supplier in Delhi, Hydraulic Stainless Steel Swivel Fittings Manufacturer in Delhi, SS Hydraulic Male Stud Coupling Price in India, SS Equal Cross Hydraulic Fittings Tube Fittings Supplier And Manufacturer in India

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Stainless Steel Hydraulic Fittings in Delhi, India

Max Tube Fittings is a leading supplier and stockist of premium Stainless Steel Hydraulic Fittings in Delhi, India. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Stainless Steel Hydraulic Fittings Uses

Stainless Steel Hydraulic Fittings are essential for safe and reliable connections in hydraulic systems. They are commonly used in industries such as construction, automotive, aerospace, marine, and oil and gas. These fittings support fluid transfer, control, and containment in high-pressure applications. Their corrosion-resistant properties make them ideal for use in offshore and chemical environments. From brake lines to hydraulic presses and heavy machinery, stainless steel fittings provide strong performance, leak resistance, and easy maintenance. They ensure system integrity and operational efficiency even under intense pressure and mechanical loads.
