Max Tube Fittings stands out as a top manufacturer and supplier of Inconel Ball Valves in Delhi, India, providing top-notch solutions for demanding industrial and instrumentation needs. Crafted from high-quality Inconel alloys (600, 625, 718, 825), these ball valves offer remarkable corrosion resistance, thermal stability, and mechanical strength, ensuring they operate leak-proof and maintain reliable flow control even in extreme conditions. Designed for use in sectors like oil & gas, chemical processing, petrochemical, power generation, marine, and aerospace, Inconel Ball Valves are built for durability, precision, and long-lasting performance, which are crucial for safety and operational efficiency.
Inconel Ball Valves are primarily made up of nickel, chromium, molybdenum, and iron, with varying amounts of niobium, cobalt, titanium, and aluminum based on the specific grade. This distinctive alloy mix grants them excellent resistance to oxidation, pitting, crevice corrosion, and stress corrosion cracking, even in harsh chemical and high-temperature settings. On the mechanical side, Inconel alloys boast a tensile strength of up to 1,270 MPa, yield strength ranging from 517 to 1,050 MPa, and outstanding creep, fatigue, and thermal resistance. These characteristics ensure they maintain dimensional stability, toughness, and reliable sealing performance for high-pressure and critical industrial applications.
| SPECIFICATION | ASTM A494 / ASME SA494 API 602, ASME B16.34, SME B16.5, ASME B16.25, ASME B1.20.1, ASME B16.11, ASME B16.10, BS 5352, DIN3352 |
| VALVE SIZE | 1/8″ TO 2″ / 6 MM TO 50 MM |
| THREAD | NPT, BSPP, BSPT, JIC, METRIC, UNF |
| CONNECTION | THREADED, TUBE END, BUTT WELD, SOCKET WELD, WELD NIPPLE, FLANGED, SAE |

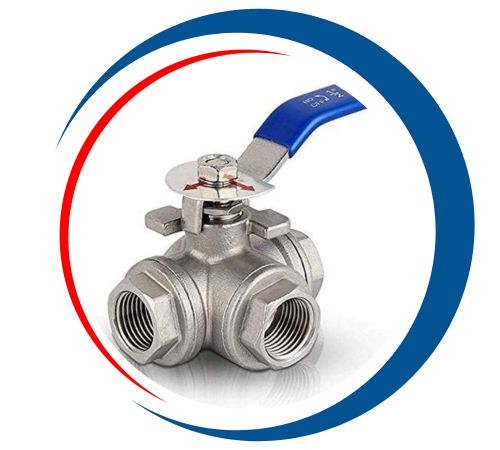

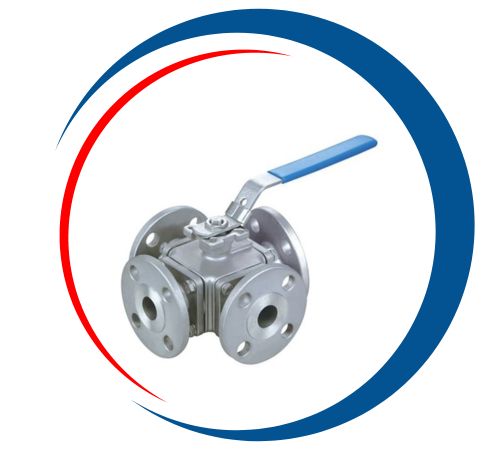

| FUNCTION | 2 WAY, 3 WAY, 4 WAY, 5 WAY, |
| PRESSURE RATING | 1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15000 PSI, 20000 PSI |
| SEAL RING MATERIAL | PTFE, PVDF, DELRIN, PEEK, GRAPHITE |
| STANDARD | ISO , DIN , ANSI , API , ASME , AWWA , MSS , |
| MEDIA | HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL |
| MEDIA TEMPERATURE | (-120* C TO 500*C )RANGE AS PER PRESSURE |
| BODY TYPE | BAR STOCK |
| PACKING DETAILS | BOX PACKING, WOODEN PALLET |
| APPLICATION | MATERIAL HANDLING EQUIPMENT, EARTH MOVING MACHINERIES , POWER GENERATING PLANT , STEEL MANUFACTURING PLANT , MINING INDUSTRIES , CHEMICAL PROCESSING MACHINES , PIPING LINE , PAINT INDUSTRIES , TRUCKS AND TRAILERS , AUTOMATION , AGRICULTURE MACHINES , AEROSPACE & DEFENCE EQUIPMENTS, |
| Material | C | Mn | Si | Fe | S | Cr | Cu | Ni | |
| Inconel | min. | – | – | – | 6.0 | – | 14.0 | – | 72.0 |
| max. | 0.15 | 1.0 | 0.5 | 10.0 | 0.015 | 17.0 | 0.5 | – | |
| Material | Elongation (% in 50mm) min | Strength of Yield 0.2% Proof (MPa) minimum | Strength of Tensile (MPa) minimum | Hardness | |
| Rockwell B (HR B) maximum | Brinell (HB) maximum | ||||
| Inconel | 40 | Psi – 45,000 , MPa – 310 | Psi – 95,000 , MPa -655 | – | – |
| Material | UNS No | Old British | Euronorm | GOST | Japanese JIS | ||
| BS | En | No | AFNOR | ||||
| Inconel | N06600 | NA 13 | NiCr15Fe | 2.4816 | NC15FE11M | МНЖМц 28-2,5-1,5 | NCF 600 |
Contact us to get a quick quote for your requirement.
Inconel ball valves are widely used in applications requiring high performance under extreme conditions. Ideal for applications in oil and gas, petrochemical and chemical processing, marine industries. Where they consume corrosive fluids, high temperatures and pressures. These valves are suitable for monitoring solid chemicals, seawater and acidic gas flows on. The unique resistance to oxidation and corrosion makes them perfect for offshore mining, refining and power plants. In addition, Inconel ball valves are used in aerospace and thermal applications, providing reliability and safety in harsh environments.
Please feel free to contact us if you need any further information or for enquiry.
