Stainless Steel 304H Instrumentation Tube Fittings

Home > Stainless Steel > Stainless Steel 304H Instrumentation Tube Fittings

Max Tube Fittings is a well-respected manufacturer and supplier of Stainless Steel 304H Instrumentation Tube Fittings based in Delhi, India. They offer high-quality, dependable solutions for critical fluid and gas control systems. SS 304H is the high-carbon version of SS 304, crafted specifically for improved strength, creep resistance, and durability at higher temperatures. These tube fittings are designed to provide leak-proof, secure, and efficient connections in instrumentation, hydraulic, and pneumatic systems. With outstanding corrosion resistance, excellent mechanical properties, and a long service life, Max Tube Fittings’ SS 304H Instrumentation Tube Fittings are trusted in a variety of industrial applications.

SS 304H Double Ferrule Tube Fittings Supplier in Delhi, DIN 1.4301 Instrumentation Tube Fittings Manufacturer in India, SS 304H Compression Tube Fittings Exporter in India, Stainless Steel 304H Ferrule Fittings Stockist in India, UNS S30409 Instrumentation Tube Fittings Exporter in Delhi , SS 304H Tube Fittings Supplier in Delhi, Stainless Steel 304H Instrumentation Fittings Manufacturers in Delhi, India

Stainless Steel 304H Instrumentation Tube Fittings are made up of chromium (18–20%), nickel (8–11%), and a higher carbon content (0.04–0.10%), which boosts tensile strength and performance at high temperatures. They have a minimum tensile strength of 515 MPa, yield strength of 205 MPa, and remarkable ductility. The increased carbon content enhances creep resistance, making them perfect for high-temperature applications. With an austenitic microstructure, these fittings provide exceptional toughness, weldability, and durability. SS 304H Instrumentation Tube Fittings blend corrosion resistance with strength, ensuring reliability in critical industrial operations.

Stainless Steel 304H Instrumentation Tube Fittings Specifications

Specifications	ASTM A182, A276, A479 / ASME SA182, SA276, SA479
Size	1/16 in. to 2 in. & 2mm to 50 mm.
Dimensional Range	1/16 to 2 inches (imperial); 2 to 50 mm (metric)
Working Pressures	Upto 2000 to 6000 PSI
Thread Type	NPT – ASME B1.20.1, SAE AS71051 \| ISO/BSP Parallel – ISO 228 \| ISO/BSP Tapered – ISO 7, BS EN 10226-1 \| SAE (Unified) – ASME B1.1
End Connections	NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Types	Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories
Equivalent To	SWAGELOK, PARKER, DK-LOK, HOKE
Max Working Pressure	8MPa \| 1200psi Depending on The Tubing Material
Working Temperature	-40°C—250°C \| -40°F—482°F Depending on The Tubing Material
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Tube Fitting uses & application	Compression tube fitting to connect two imperial tubes (or fractional tubes), two metric tubes or, also, the connection of a metric tube at one end and a fractional/imperial tube at the other end in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc Tube Fittings useful for their extreme temperature and pressure capabilities for high/low temperatures applications, and their compatibility with aggressive fluids, compression fittings can be seen in systems varying from gas lines in refineries, plumbing etc.

Stainless Steel 304H Instrumentation Tube Fittings Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	N
SS 304H	0.10 max	2.0 max	0.75 max	0.045 max	0.03 max	18 – 20	–	8 – 10.5	–

Stainless Steel 304H Instrumentation Tube Fittings Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
304H	515	205	40	92	201

Top Stainless Steel 304H Instrumentation Tube Fittings Manufacturing Company in Delhi

At Max Tube Fittings, we are the largest supplier, manufacturer, and exporter of Stainless Steel 304H Instrumentation Tube Fittings in Delhi, India. Our advanced manufacturing facilities, strategically positioned in the India, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

Types of Stainless Steel 304H Instrumentation Tube Fittings

Stainless Steel 304H Instrumentation Tube Fittings Equivalent

STANDARD	UNS	WERKSTOFF NR.	JIS
SS 304H	S30409	1.4948	SUS 304H

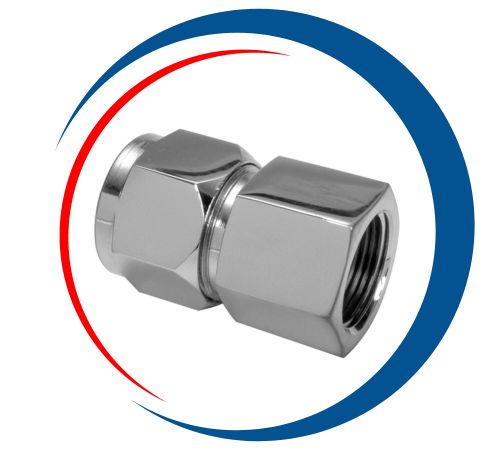

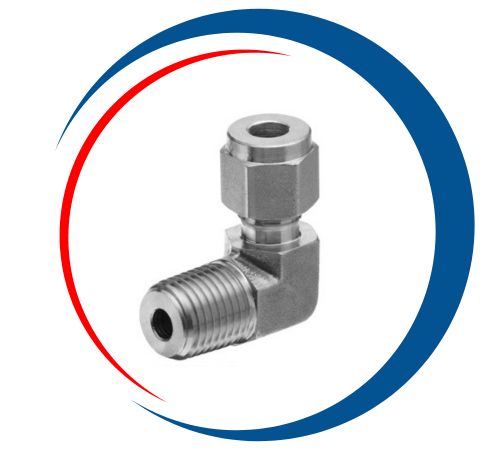

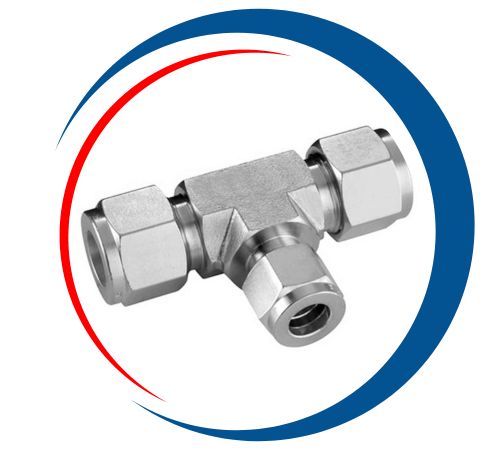

SS 304H Female Elbow Manufacturer in Delhi, SS 304H Male Run Tee Supplier in India, Stainless Steel 304H Male Connector Exporter in Delhi, Grade 304H SS Female Connector Stockist in India, SS 304H Male Branch Tee Exporter in Delhi, SUS 304H Bulk Head Female Connector Supplier in Delhi, SS 304 Bulk Head Male Connector Stockist in Delhi, SS 304H Male Elbow Supplier in Delhi, India

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Stainless Steel 304H Instrumentation Tube Fittings in Delhi, India

Top Stainless Steel 304H Instrumentation Tube Fittings Manufacturing Company in Delhi

At Max Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Stainless Steel 304H Instrumentation Tube Fittings in Delhi, India. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the India, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

Stainless Steel 304H Instrumentation Tube Fittings Uses

Stainless Steel 304H Instrumentation Tube Fittings are widely used in applications requiring high temperatures and high pressures. Their heat resistance and corrosion protection make them ideal for petrochemical, oil and gas and power plants. Used to ensure safe and slip-free connections to equipment systems, piping and monitoring systems. In addition, they are suitable for chemical applications, where strong and corrosion-resistant materials are needed from harsh solvents. Fittings also play an important role in industries such as pharmaceuticals and food processing, where cleanliness and reliability are important.
