Monel Tube Fittings

Home > Monel > Monel Tube Fittings

Max Tube Fittings stands out as a reliable manufacturer and supplier of Monel Tube Fittings in Delhi, India, providing top-notch solutions for leak-proof and durable tubing connections. Crafted from Monel alloys (Monel 400 and Monel K500), these fittings are designed to perform exceptionally well in tough and corrosive settings. Renowned for their ability to withstand seawater, acids, alkalis, and high temperatures, Monel Tube Fittings guarantee secure and vibration-resistant connections in critical systems. They find extensive use in marine, chemical, petrochemical, and offshore industries, where reliability, strength, and corrosion resistance are vital for safe and efficient operations.

Monel Tube Fittings Price in Delhi, Monel Instrumentation Fittings Supplier in Delhi, Monel Alloy Double Ferrule Fittings Manufacturer in Delhi, Monel Alloy Branch Tees Price in India, Monel Female Elbow Dealer in Delhi, Monel Hydraulic Tube Fittings Supplier in India, Monel Blanking Plug Supplier And Manufacturer in India, Monel Union Tee In Delhi, India.

Monel Tube Fittings are primarily made up of nickel (at least 63%) and copper (up to 34%), along with trace amounts of iron, manganese, silicon, and carbon. Monel 400 is known for its outstanding corrosion resistance and toughness, while Monel K500 offers enhanced strength and hardness thanks to the addition of aluminum and titanium. Their mechanical properties boast a tensile strength that exceeds 550 MPa, high yield strength, excellent fatigue resistance, and remarkable durability in both acidic and alkaline environments. These fittings maintain their toughness across a broad temperature range, ensuring a long service life in demanding industrial applications.

Monel Tube Fittings Specifications

Monel Tube Fittings specification (ASTM / ASME)	ASTM B366/ ASME SB366
Working Pressure	Up to 6,000psi (based on severity of application)
Two-Ferrule Tube Fittings	Pressure Ratings : Up to 11 000 psig (760 bar)
Medium-Pressure, Gaugeable	Pressure Ratings: Up to 20 000 psig (1378 bar) Temperature Ratings: Up to 1000°F (537°C)
High-Pressure Monel Tube Fittings	Pressure Ratings: Up to 60 000 psig (4134 bar) Temperature Ratings: Up to 1000°F (537°C) Materials of construction: 316 Stainless Steel Tube Fittings, Alloy 2507, Monel 400 Tube fittings
Monel Tube Fittings Special sizes	22mm Monel tube fittings 25mm Monel 400 tube fittings 32mm Monel K500 tube fittings 50mm Monel Ferrule tube fittings
End Connections	Types: NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Types	Unions, NPT, medium-pressure cone and thread adapters, male SAE/MS, reducers, port connectors, tube adapters, caps, plugs
Monel Ferrule Tube Fittings Sizes	1/16 to 2 in.; 2 to 50 mm 1/4, 3/8, 1/2, 9/16, 3/4 in.; 6, 10, 12 mm
Specification	Items Made from Hex – ASTM B574 ; Items made from Round Bar- ASTM B564
Brand Name	Monel Tube fittings
Tube Size	1/16”OD to 2”OD, 2mm OD to 50mm OD
Threads	NPT (ANSI B1.20.1), BSP, BSPT (ISO thread configurations), UNF, SAE etc.
PTFE Standards	ASTM D1710, ASTM D3294
Applicable Temperature	150-400°C
Monel Tube Fittings Packing Details	As your detail request Normally carton size – 211614CM/312116CM/364550CM Normally wooden box size – 382717CM Normally 1piece/opp, 10-20pcs/carton

Equivalent Grades of Monel Tube Fittings

STANDARD	AFNOR	UNS	BS	WERKSTOFF NR.	GOST	JIS	EN
Monel K500	–	N05500	–	2.4375	–	–	–
Monel 400	NU-30M	N04400	NA 13	2.4360	МНЖМц 28-2,5-1,5	NW 4400	NiCu30Fe

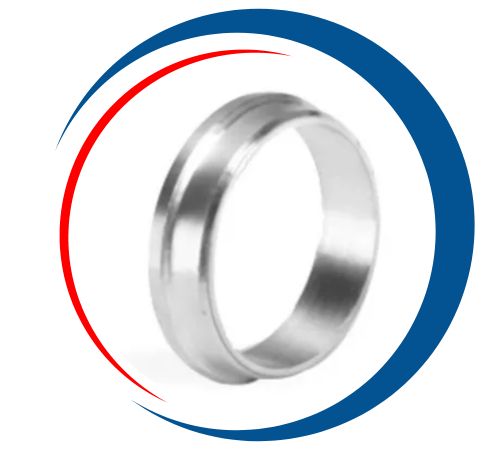

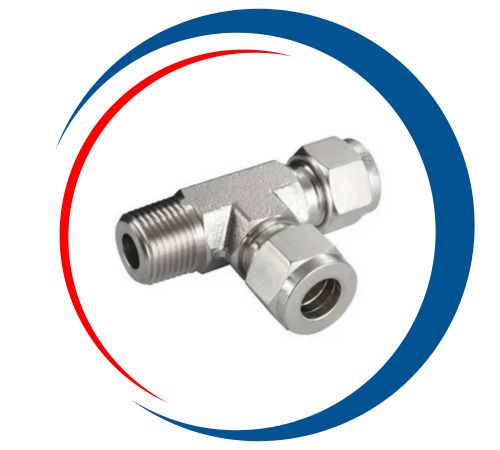

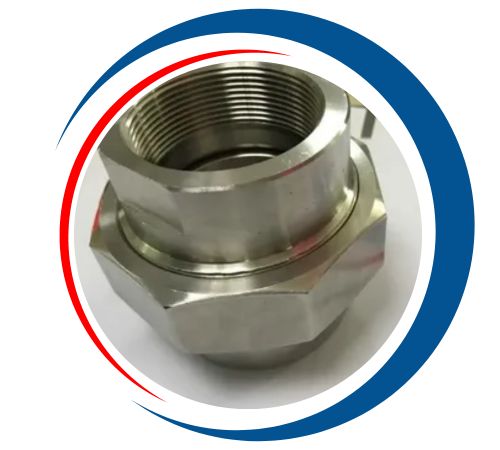

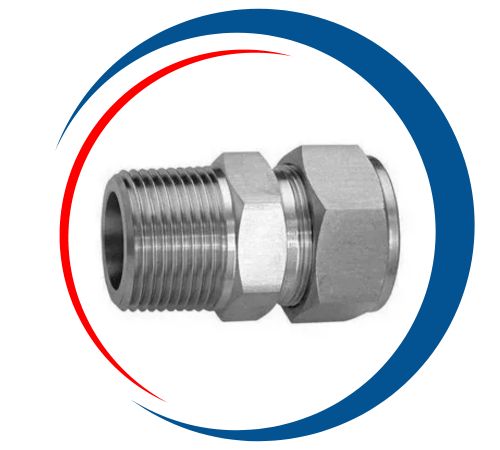

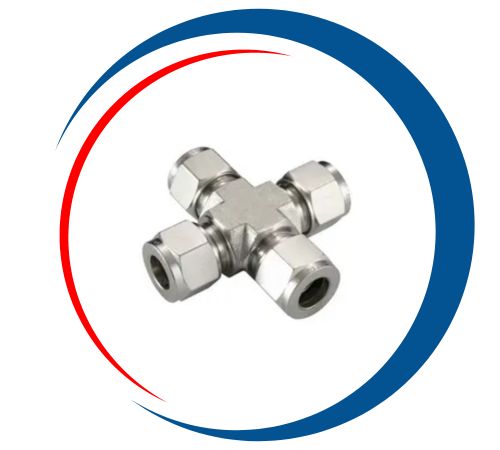

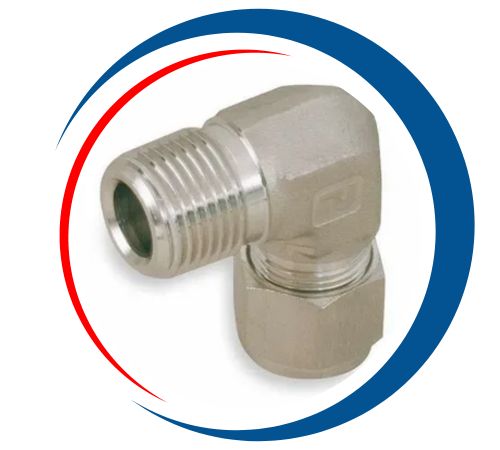

Types of Monel Tube Fittings

Dimension of Monel Tube Fittings

OD	OD Actual	Thread Designation – Nominal Size	Thread per inch
(fraction inch)	(inches)	(inches)	NPT	BSP
5/16	0.3125	1/16	27	28
13/32	0.405	1/8	27	28
35/64	0.540	1/4	18	19
43/64	0.675	3/8	18	19
27/32	0.840	1/2	14	14
1-3/64	1.050	3/4	14	14
1-5/16	1.315	1	11-1/2	11
1-21/32	1.660	1-1/4	11-1/2	11
1-29/32	1.900	1-1/2	11-1/2	11
2-3/8	2.375	2	8	11
2-7/8	2.875	2-1/2	8	11
3-1/2	3.5	3	8	11
4	4.0	3-1/2	8	11
4-1/2	4.5	4	8	11
5-5/8	5.563	5	8	11
6-5/8	6.718	6	8	11

Monel Male Bulkhead Connector Manufacturer in Delhi, Monel Hydraulic Fittings Exporter in Delhi, Monel Single Ferrule Compression Fittings Supplier in Delhi, Monel Flared Tube Fittings Supplier in India, Monel Union Cross In Delhi, Monel Instrumentation Fittings In India, Monel Bulkhead Union Price List in India, Monel Ferrule Tube Fittings Manufacturer in Delhi, Monel Alloy Compression Tube Fittings Exporter in Delhi, India.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Monel Tube Fittings in Delhi, India

At Max Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Monel Tube Fittings in Delhi, India. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the India, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

Monel Tube Fittings Uses

Monel tube fittings are widely used in various industries due to their exceptional corrosion resistance and high strength. Common applications include marine environments, chemical processing, and oil and gas industries, where they are essential for transporting aggressive fluids. Their durability makes them ideal for high-temperature applications and extreme environments. Monel fittings are also used in heat exchangers, valves, and piping systems, ensuring reliability and longevity. Additionally, their resistance to pitting and stress corrosion cracking enhances their performance in harsh conditions, making them a preferred choice for critical applications.
