Stainless Steel Condensate Pots

Home > Stainless Steel > Stainless Steel Condensate Pots

Max Tube Fittings is a trustworthy manufacturer and supplier of premium Stainless Steel Condensate Pots in Delhi, India. Our condensate pots are designed to improve the accuracy and safety of differential pressure measurements. They are made from high-grade stainless steel to ensure long-lasting performance and corrosion resistance. Ideal for steam service applications, these pots collect condensate and protect instruments from high-temperature steam. With a focus on quality, customization, and timely delivery, Max Tube Fittings serves customers across various industries, such as power plants, chemical processing, and refineries, with precisely engineered condensate pots.

Stainless Steel Type D Condensate Pot with Red Oxide Coated Manufacturer Delhi, Stainless Steel Type E Condensate Pot with Zinc Plating Dealer Delhi, SS Type F Condensate Pots Supplier Delhi, 316 Stainless Steel Type D Condensate Pot Exporter In India, Stainless Steel Type E Condensate Pot with Galvanized Plating Sockets Manufacturer India, Stainless Steel Type F Condensate Pots with 6 Ports Supplier Delhi, India.

Stainless Steel Condensate Pots are made from SS 304 or SS 316, containing chromium (18–20%), nickel (8–12%), and molybdenum for better corrosion resistance. These materials show high tensile strength (515 MPa) and yield strength (205 MPa), with excellent elongation (30%) and toughness at high temperatures. The stainless steel provides resistance to scaling and pitting in steam applications. Mechanical properties adhere to ASTM A312 or A403 standards. This durability enables condensate pots to function reliably under high-pressure steam lines and harsh industrial conditions.

Stainless Steel Condensate Pots Specifications

Standard : DIN, ASTM, BS and all International Standards.
Number of Ports : 2 ports upto 8 ports, refer to the section below for arrangements.
Working Pressure : 6000 PSIG(41.34 MPa).
Pressure Rating : 1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI.
Header Inlet : 1” Female Bsp or Npt threaded to ASME B16.1 or Flanged inlet optional.
Header Outlet/drain : None / or ¼”Male Bsp or Npt threaded to ASME B16.1 or 150# cast fitting.
Pipe size : 2″, 3″, 4″, 5”, 6” and larger size upon request.
Pipe Schedule : 40, 80, 160, XX seamless pipe.
Total Length : Pipe length 8″,10″,12″ and larger length upon request.
Thread Connections : NPT as per ANSI B1.20.1,Socket weld as per ANSI B16.11, Butt weld as per ANSI B16.9.

Top Stainless Steel Condensate Pots Manufacturing Company in Delhi

At Max Tube Fittings, we are the largest supplier, manufacturer, and exporter of Stainless Steel Condensate Pots in Delhi, India. Our advanced manufacturing facilities, strategically positioned in the India, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

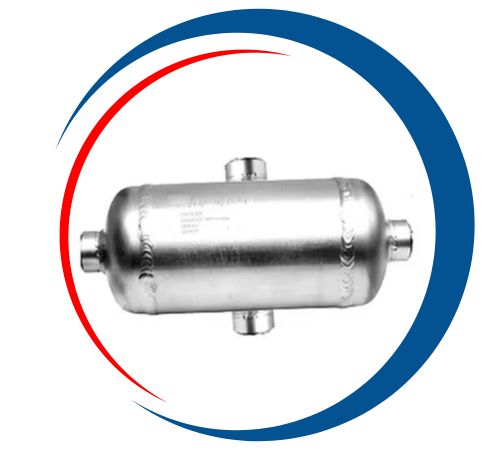

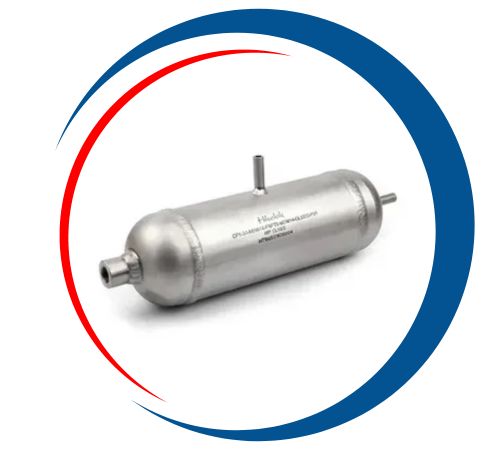

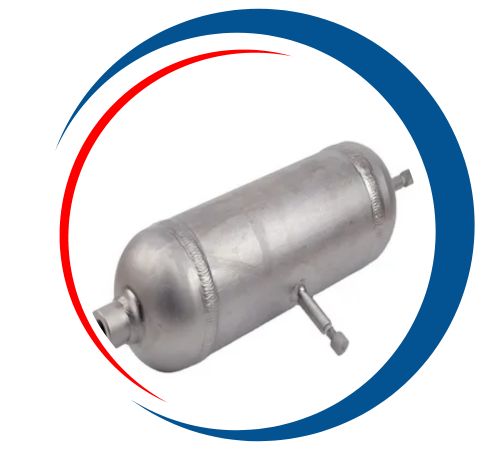

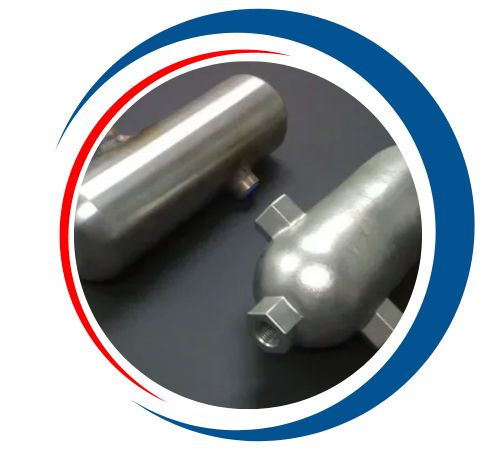

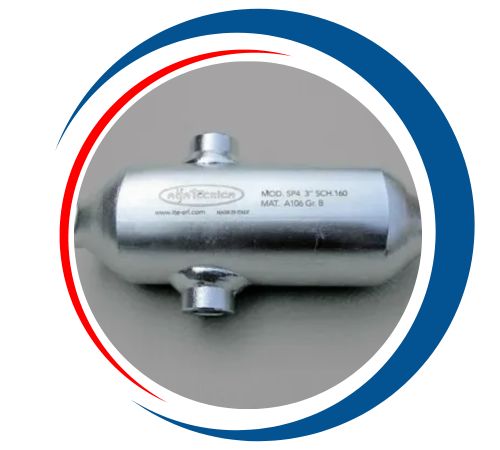

Types of Stainless Steel Condensate Pots

Sizing Of Stainless Steel Condensing Pot

P NPT – F	Capacity (Internal Vol.0)cm 3±5%	Pressure Rating PSIG	T mm	L mm	B mm
1/4”	150	1800	2.05	135	50.08
1/4”	300	1800	2.05	225	50.08
1/4”	400	1800	2.05	290	50.08
1/4”	500	1800	2.05	350	50.08
1/4”	1000	1800	4.06	275	88.09
1/4”	2250	1800	5.02	435	120
1/4”	3785	1800	5.02	680	120
1/2”	1000	1800	4.06	275	88.09
1/2”	2250	1800	5.02	435	102
1/2”	3785	1800	5.02	680	102
3/4”	1000	1800	4.06	275	88.09
3/4”	2250	1800	5.02	435	102
3/4”	3785	1800	5.02	680	102

SS Type D Condensate Pots Price in Delhi, SS Type E Condensate Pots Manufacturer Supplier in Delhi, Stainless Steel Type F Condensate Pot with Red Oxide Coated Manufacturer in Delhi, Stainless Steel 316 Socket Weld Half Couplings Price in India, Stainless Steel Type D Condensate Pot with Galvanized Plating Supplier And Manufacturer in India, Stainless Steel Type E Condensate Pots with 4 Ports Dealer In Delhi, Stainless Steel Type F Condensate Pot with Galvanized Plating In Delhi, India.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Stainless Steel Condensate Pots Supplier in Delhi, India

Max Tube Fittings is a leading supplier and stockist of premium Stainless Steel Condensate Pots in Delhi, India. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Stainless Steel Condensate Pots Uses

Stainless Steel Condensate Pots are primarily used in steam pipelines to collect and hold condensate, preventing direct steam contact with pressure gauges, transmitters, and flow meters. This protects instruments from thermal shock and extends equipment life. These pots are essential in power generation, oil and gas, chemical, and pharmaceutical industries, where accurate steam measurement is crucial. Positioned between the primary process line and measurement devices, condensate pots ensure consistent and precise differential pressure readings. They also serve as maintenance points for draining, venting, and flushing steam systems, ensuring safety and efficiency in high-temperature operations.
