Nickel Alloy Condensate Pots

Home > Nickel Alloy >Nickel Alloy Condensate Pots

Max Tube Fittings stands out as a reliable manufacturer and supplier of Nickel Alloy Condensate Pots based in Delhi, India. We provide top-notch solutions for fluid and steam systems. Known for their exceptional corrosion resistance, mechanical strength, and durability in harsh conditions, our Nickel Alloy Condensate Pots are expertly crafted to gather and temporarily hold condensate in steam and fluid pipelines. This design safeguards sensitive instruments from direct exposure to steam or corrosive substances. Built to meet international standards, they guarantee system integrity, safety, and efficiency, making them ideal for critical industrial applications where reliability is key.

Nickel Alloy Type A Condensate Pot with Galvanized Plating Manufacturer Delhi, Nickel Alloy Condensate Pot Type B Dealer Delhi, 200 Nickel Alloy Type C Condensate Pot Supplier Delhi, Nickel Alloy Type A Condensate Pots with 2 Ports Exporter In India, 200 Nickel Alloy Type B Condensate Pot Supplier India, Alloy 201 Type C Condensate Pot with Zinc Plating Delhi, India.

Our Nickel Alloy Condensate Pots are crafted from high-purity nickel, with carefully controlled amounts of iron, copper, and manganese to enhance strength and toughness. This alloy excels in resisting corrosive and caustic environments, particularly in alkaline solutions and neutral salts. They boast a tensile strength of about 350–380 MPa, a yield strength of around 100 MPa, and impressive elongation, ensuring both durability and ductility. With outstanding thermal and electrical conductivity, these pots maintain excellent stability across varying temperatures, providing dependable protection for instrumentation systems in challenging operating conditions.

Nickel Alloy Condensate Pots Specifications

Standard : DIN, ASTM, BS and all International Standards.
Number of Ports : 2 ports upto 8 ports, refer to the section below for arrangements.
Working Pressure : 6000 PSIG(41.34 MPa).
Pressure Rating : 1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI.
Header Inlet : 1” Female Bsp or Npt threaded to ASME B16.1 or Flanged inlet optional.
Header Outlet/drain : None / or ¼”Male Bsp or Npt threaded to ASME B16.1 or 150# cast fitting.
Pipe size : 2″, 3″, 4″, 5”, 6” and larger size upon request.
Pipe Schedule : 40, 80, 160, XX seamless pipe.
Total Length : Pipe length 8″,10″,12″ and larger length upon request.
Thread Connections : NPT as per ANSI B1.20.1,Socket weld as per ANSI B16.11, Butt weld as per ANSI B16.9.

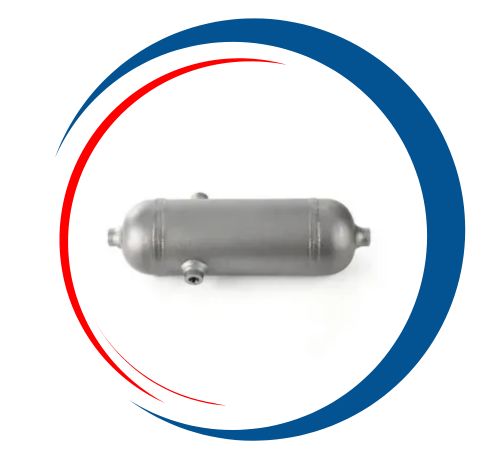

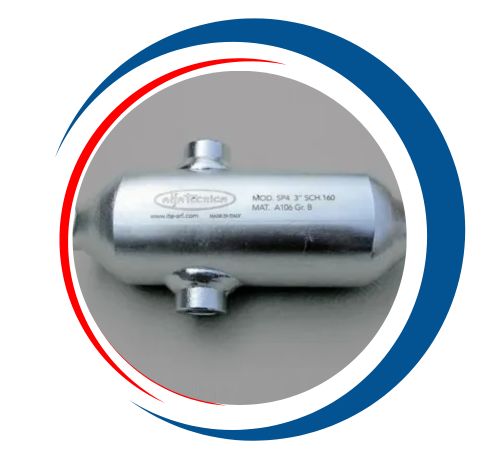

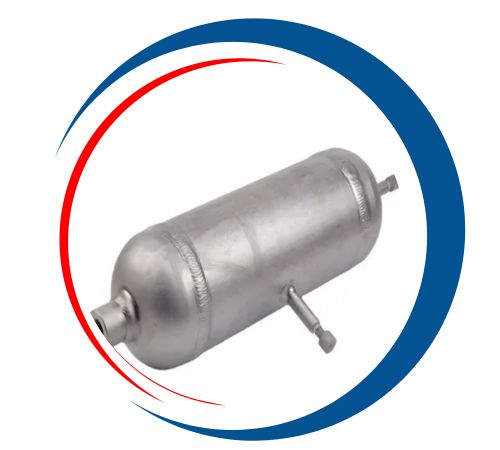

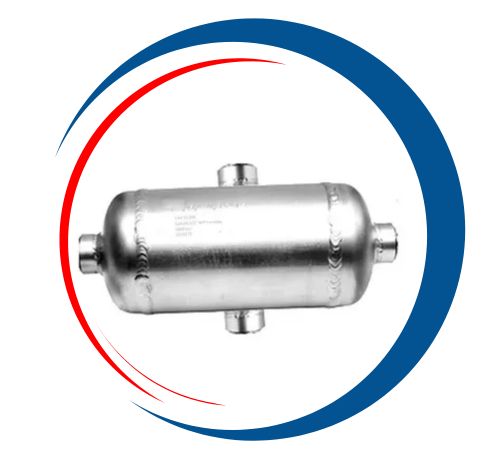

Types of Nickel Alloy Condensate Pots

Top Nickel Alloy Condensate Pots Manufacturing Company in Delhi

At Max Tube Fittings, we are the largest supplier, manufacturer, and exporter of Nickel Alloy Condensate Pots in Delhi, India. Our advanced manufacturing facilities, strategically positioned in the India, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

Sizing Of Alloy Condensing Pot of Nickel Alloy Instrumentation ManifoldsNickel Alloy Condensate Pots

P NPT – F	Capacity (Internal Vol.0)cm 3±5%	Pressure Rating PSIG	T mm	L mm	B mm
1/4”	150	1800	2.05	135	50.08
1/4”	300	1800	2.05	225	50.08
1/4”	400	1800	2.05	290	50.08
1/4”	500	1800	2.05	350	50.08
1/4”	1000	1800	4.06	275	88.09
1/4”	2250	1800	5.02	435	120
1/4”	3785	1800	5.02	680	120
1/2”	1000	1800	4.06	275	88.09
1/2”	2250	1800	5.02	435	102
1/2”	3785	1800	5.02	680	102
3/4”	1000	1800	4.06	275	88.09
3/4”	2250	1800	5.02	435	102
3/4”	3785	1800	5.02	680	102

Nickel Alloy Type A Condensate Pot with Red Oxide Coated Price in Delhi, Nickel Alloy Type B Condensate Pots with 3 Ports Supplier in Delhi, 201 Nickel Alloy Condensate Pots Type C Manufacturer in Delhi, Alloy 201 Type A Condensate Pots Dealer in India, 201 Nickel Alloy Condensate Pots Type B Supplier And Manufacturer in India, Nickel Alloy Type C Condensate Pots with 4 Ports Exporter In Delhi, India.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Nickel Alloy Condensate Pots Supplier in Delhi, India

Max Tube Fittings is a leading supplier and stockist of premium Nickel Alloy Condensate Pots in Delhi, India. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the Metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Nickel Alloy Condensate Pots Uses

Nickel alloy condensate pots are widely used in various industrial applications due to their excellent corrosion resistance and durability. They are commonly utilized in steam and condensate systems, oil and gas processing, chemical manufacturing, and power generation. These pots effectively collect and manage condensate, preventing damage to downstream equipment and ensuring efficient system operation. Additionally, they are ideal for use in high-temperature and high-pressure environments, making them essential components in industries requiring reliable performance under challenging conditions, such as petrochemicals, pharmaceuticals, and food processing.
