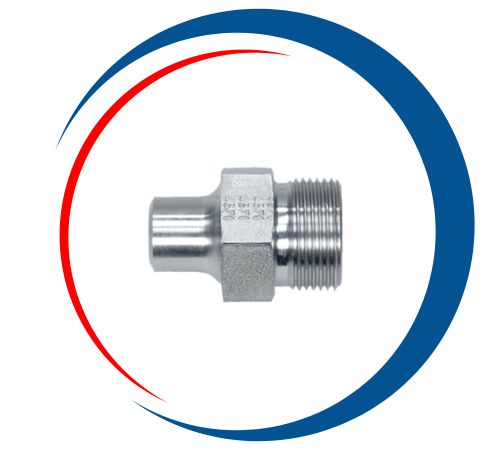

Max Tube Fittings is a reliable manufacturer and supplier of Hydraulic Weldable Nipples based in Delhi, India. We provide top-notch solutions for secure hydraulic connections. These nipples are crafted for direct welding onto hydraulic tubes or pipes, ensuring a robust, leak-proof joint in high-pressure hydraulic systems. Made from carbon steel, stainless steel, and alloy steel, they are precision-engineered to comply with international standards like DIN 2353 and ISO specifications. Our Hydraulic Weldable Nipples find extensive use in construction machinery, hydraulic presses, material handling systems, and fluid power units, guaranteeing durability, reliability, and efficient hydraulic performance even in extreme conditions.
Our Hydraulic Weldable Nipples are crafted from high-quality carbon steel, stainless steel (304/316), and alloy steel, ensuring exceptional strength and durability. They boast impressive tensile strength, yield strength, and hardness, making them perfect for high-pressure and vibration-heavy applications. With precise machining, a smooth finish, and excellent weldability, these nipples provide optimal sealing performance when welded to hydraulic tubes. Their resistance to corrosion, fatigue, and wear ensures a long service life, even in tough environments. Available in various sizes, pressure ratings, and custom dimensions, they meet the rigorous standards of the global hydraulic industry.
| STANDARD | DIN 2353/ ISO 8434-1 |
| MATERIAL | MS, CS, SS 304 ,SS 304L , SS 316 ,SS 316L, SS 316TI ( 1.4571) , BRASS , COPPER , DUPLEX , SUPER DUPLEX , INCONEL , MONEL , HASTELLOY , 904L , 6MO, TITANIUM , ALUMNIUM, ALLOY 20 |
| SERIES | LL- LOW PRESSURE , L- MEDIUM PRESSURE, S- HIGH PRESSURE |
| WORKING PRESSURE | (LOW) LL SERIES – 100 BAR |
| (MEDIUM)L SERIES – 100 BAR TO 500 BAR | |
| (HEAVY)S SERIES – 200 BAR TO 800 BAR | |
| SIZE RANGE | LL SERIES – 4LL TO 12LL |
| L SERIES – 6L TO 42L | |
| S SERIES – 6S TO 38S | |
| BODY TYPE | BAR STOCK |
| ACCESSORIES | O-RING |
| O-RING & SEALS | NBR ( -35*C TO 100* C ) VITON (-25*C TO 200* C) |
| SURFACE | CARBON STEEL – BLACK PHOSPHATED |
| STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH | |
| TEMPERATURE | STEEL – (-40* C TO 120*C) ,STAINLESS STEEL – (-60*C TO 400*C) BRASS – (-60*C TO 175*C) |
| MATERIAL DESIGNATOR | STAINLESS STEEL – ASTM A 276 , ASTM 182 |
| STEEL – ASTM 108/A105, JIS G4051 S20C, S45C,/G3201 SF440A. | |
| BRASS – ASTM B16 UNS C36000 , ASTM B282 ALLOY 37700 , JIS H3250 C3604 , C3771 , JIS H3250 C3771. |
At Max Tube Fittings, we are the largest supplier, manufacturer, and exporter of Hydraulic Weldable Nipple in Delhi, India. Our advanced manufacturing facilities, strategically positioned in the India, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.
| Outer Diameter (mm) | To Fit Tube Size (mm) | d1 (mm) | L (mm) | O-Ring (mm) | Max. Pressure (bar) |
| 8 | 8 x 2 | 4 | 31 | 6 x 1.5 | 400 |
| 10 | 10 x 1.5 | – | – | – | 400 |
| 10 | 10 x 2 | 6 | 32.5 | 7.5 x 1.5 | 315 |
| 12 | 12 x 2.5 | 6 | 32.5 | 9 x 1.5 | 400 |
| 16 | 16 x 2 | – | – | – | 400 |
| 16 | 16 x 3 | 10 | 38.5 | 12 x 2 | 400 |
| 20 | 20 x 3 | 14 | 44.5 | 16.3 x 2.4 | 250 |
| 25 | 25 x 3 | 19 | 49.5 | 20.3 x 2.4 | 250 |
| 25 | 25 x 4 | 17 | 49.5 | 20.3 x 2.4 | 315 |
| 30 | 30 x 4 | 22 | 52 | 25.3 x 2.4 | 250 |
| 30 | 30 x 5 | 20 | 52 | 25.3 x 2.4 | 315 |
| 38 | 38 x 4 | 30 | 56.5 | 33.3 x 2.4 | 160 |
| 38 | 38 x 5 | 28 | 56.5 | 33.3 x 2.4 | 250 |
| 38 | 38 x 6 | 26 | 56.5 | 33.3 x 2.4 | 315 |
Contact us to get a quick quote for your requirement.
Max Tube Fittings is a leading supplier and stockist of premium Hydraulic Weldable Nipple in Delhi, India. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.
Hydraulic Weldable Nipples are primarily used to connect pipes, tubes, or hoses in hydraulic systems to ensure safe, waterproof, high-pressure connections They are commonly used in industrial equipment, construction equipment, and automotive systems though water transfer, hydroelectric transmission lines , and fuel pipelines. These nipples are ideal for applications that require strong, durable joints that withstand extreme pressures and temperature fluctuations. Its weldability makes it suitable for permanent installation in oil and gas pipelines, chemical plants, and other heavy-duty environments where reliability is essential.
