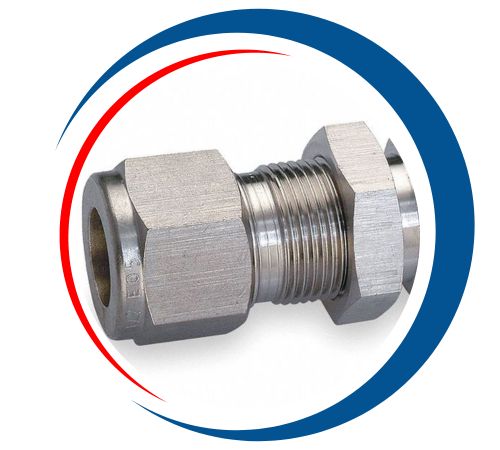

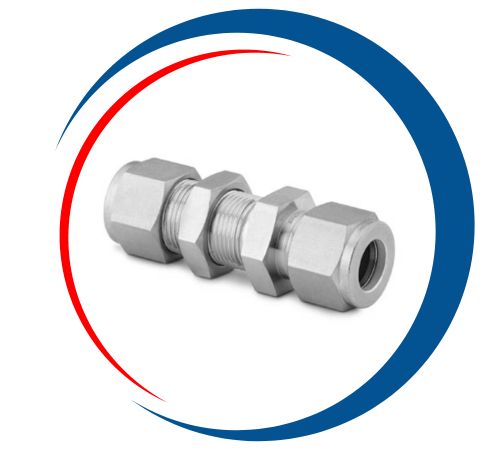

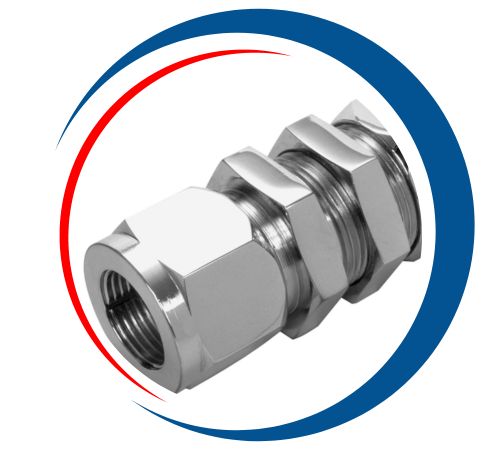

Max Tube Fittings stands out as a top manufacturer and supplier of Hydraulic Bulkhead Unions in Delhi, India, providing top-notch solutions for secure and leak-proof hydraulic connections. These unions are specifically crafted to connect tubing or piping through panels, walls, or bulkheads, ensuring a strong and dependable seal. Made from high-quality stainless steel, carbon steel, or brass, these fittings are built to endure high pressures, vibrations, and temperature fluctuations. With meticulous design and compliance with global standards, our Hydraulic Bulkhead Unions find extensive use in construction machinery, agricultural equipment, oil & gas, power generation, and industrial hydraulic systems.
Hydraulic Bulkhead Unions are generally crafted from stainless steel, carbon steel, brass, or alloy steel, often featuring surface treatments like zinc plating, passivation, or nickel coating to enhance corrosion resistance. They come with precisely designed threads and sealing features to guarantee leak-proof performance. Mechanically, these fittings boast high tensile strength, resistance to vibrations, and the capability to handle working pressures of up to 6000 PSI, depending on the material and size. Their sturdy construction ensures a long service life, reliable clamping, and exceptional performance in demanding hydraulic and fluid power applications.
| STANDARD | DIN 2353/ ISO 8434-1 |
| MATERIAL | |
| MS, CS, SS 304 ,SS 304L , SS 316 ,SS 316L, SS 316TI ( 1.4571) , BRASS , COPPER , DUPLEX , SUPER DUPLEX , INCONEL , MONEL , HASTELLOY , 904L , 6MO, TITANIUM , ALUMNIUM, ALLOY 20 | |
| SERIES | LL- LOW PRESSURE , L- MEDIUM PRESSURE, S- HIGH PRESSURE |
| WORKING PRESSURE | (LOW) LL SERIES – 100 BAR |
| (MEDIUM)L SERIES – 100 BAR TO 500 BAR | |
| (HEAVY)S SERIES – 200 BAR TO 800 BAR | |
| SIZE RANGE | LL SERIES – 4LL TO 12LL |
| L SERIES – 6L TO 42L | |
| S SERIES – 6S TO 38S | |
| BODY TYPE | BAR STOCK |
| SURFACE | CARBON STEEL -TRIVALENT ZINC PLATED , YELLOW PLATTING , BLACK PHOSPHATED, |
| STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH | |
| TEMPERATURE | STEEL – (-40* C TO 120*C) ,STAINLESS STEEL – (-60*C TO 400*C) BRASS – (-60*C TO 175*C) |
| MATERIAL DESIGNATOR | STAINLESS STEEL – ASTM A 276 , ASTM 182 |
| STEEL – ASTM 108/A105, JIS G4051 S20C, S45C,/G3201 SF440A. | |
| BRASS – ASTM B16 UNS C36000 , ASTM B282 ALLOY 37700 , JIS H3250 C3604 , C3771 , JIS H3250 C3771. |
At Max Tube Fittings, we are the largest supplier, manufacturer, and exporter of Hydraulic Bulkhead Union in Delhi, India. Our advanced manufacturing facilities, strategically positioned in the India, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.
| Body Material | Size 1 | Size 2 |
|---|---|---|
| Alloy 400 | 1/16″ | 1/16″ |
| Alloy C-276 | 1/8″ | 1/8″ |
| Brass | 3/16″ | 3/16″ |
| Stainless Steel 316 | 1/4″ | 1/4″ |
| 5/16″ | 5/16″ | |
| 3/8″ | 3/8″ | |
| 1/2″ | 1/2″ | |
| 5/8″ | 5/8″ | |
| 3/4″ | 3/4″ | |
| 1″ | 1″ | |
| 1-1/4″ | 1-1/4″ | |
| 1-1/2″ | 1-1/2″ | |
| 2″ | 2″ | |
| 3mm | 3mm | |
| 4mm | 4mm | |
| 6mm | 6mm | |
| 8mm | 8mm | |
| 10mm | 10mm | |
| 12mm | 12mm | |
| 14mm | 14mm | |
| 15mm | 15mm | |
| 16mm | 16mm | |
| 18mm | 18mm | |
| 20mm | 20mm | |
| 25mm | 25mm | |
| 38mm | 38mm |
Contact us to get a quick quote for your requirement.
Max Tube Fittings is a leading supplier and stockist of premium Hydraulic Bulkhead Union in Delhi, India. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.
Hydraulic bulkhead union are used to create safe, leak-proof connections between hydraulic lines through walls, panels, or bulkheads. They are essential in applications where hydraulic systems must be transported within system constraints, such as aircraft, ships, and industrial equipment This association ensures pressure-free connections in confined and frequently used areas aerospace, marine, oil and gas industries, and construction High pressure, extreme temperatures , and vibration resistance make it ideal for use in harsh environments and systems in need of.
